Author Topic: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?  (Read 9037 times)

0 Members and 1 Guest are viewing this topic.

Supershooter

  • Elite CVO Member
  • *****
  • Offline Offline
  • Posts: 666
  • First Ride 03 FXDWG

    • CVO1: 2010 SEUC-sold
    • CVO2: 2011 SESG
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #15 on: January 27, 2013, 07:57:04 PM »

Here is the dyno sheet...I'm curiuos if anyone else would share my concerns or if I'm disappointed about nothing.
Supershooter
Logged

HD Street Performance

  • Vendor
  • 2.5K CVO Member
  • *
  • Offline Offline
  • Posts: 3133
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #16 on: January 27, 2013, 10:20:34 PM »

At the risk of pissing somebody off (not my intention) I suspect the tune.
The dyno chart has the look of timing being pulled, Delphi Ion Sensing, and other things happening down low. It should be hitting 100 torque where 80 is now.
There may be a few more on top to be had and if the timing is being falsely retarded the peak torque will rise considerably.
But I don't claim to be a tuner.
Logged

Supershooter

  • Elite CVO Member
  • *****
  • Offline Offline
  • Posts: 666
  • First Ride 03 FXDWG

    • CVO1: 2010 SEUC-sold
    • CVO2: 2011 SESG
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #17 on: January 27, 2013, 10:29:27 PM »

I appericate the input, at this point I'm the one that's not happy and looking for some ammo when I call the dealer in Tues.
Supershooter
Logged

TorqueInc

  • Get your facts first, then you can distort them as you please. Mark Twain
  • Vendor
  • Senior CVO Member
  • *
  • Offline Offline
  • Posts: 391
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #18 on: January 27, 2013, 11:34:48 PM »

  Neither

  Consider waiting for the Kury TC-24 or possibly GMR's genesis cam  :2vrolijk_21:
Logged
2011 SG Sedona Orange 105" 125/123

www.jwperf.com

HILLSIDECYCLE.COM

  • Banned
  • 1K CVO Member
  • *
  • Offline Offline
  • Posts: 2085
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #19 on: January 28, 2013, 08:28:38 AM »

Pull the heads, cc/equalize the chambers to carry 10.0 cr, with a .030" head gasket, and install an S&S .570.
You will be mighty impressed. :2vrolijk_21:
Scott
Logged

cvo1717

  • Elite CVO Member
  • *****
  • Offline Offline
  • Posts: 673
    • NY


    • CVO1: 2013 CVO BREAKOUT BLACK SOLD
    • CVO2: 2010 CVO FATBOB BLACK DENIM HELLFIRE FLAMES TRADED IN
    • CVO3: 2020 CVO street glide
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #20 on: January 28, 2013, 09:31:47 AM »

Pull the heads, cc/equalize the chambers to carry 10.0 cr, with a .030" head gasket, and install an S&S .570.
You will be mighty impressed. :2vrolijk_21:
Scott

Scott do you have to grind reliefs in the stock pistion when you do the work to the heads?
Logged
Mike
2013 CVO BREAKOUT 117 KIT
ROSAS HEADS WOODS TW 8-6 CAM
RB RACING 2 INTO 1 PROSTOCK CHALLENGE PIPE
130 HP  134 TQ STD
126 hp   131 TQ SAE

HILLSIDECYCLE.COM

  • Banned
  • 1K CVO Member
  • *
  • Offline Offline
  • Posts: 2085
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #21 on: January 28, 2013, 09:49:53 AM »

Scott do you have to grind reliefs in the stock pistion when you do the work to the heads?

Not with that cam/work, but it is always good to double check at the point of installation.
Scott
Logged

Razorback

  • Newbie
  • *
  • Offline Offline
  • Posts: 41
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #22 on: January 28, 2013, 09:57:21 AM »

Here is the dyno sheet...I'm curiuos if anyone else would share my concerns or if I'm disappointed about nothing.
Supershooter
I have to be really honest with you, that looks anemic! I would expect the stock 255's to have a better showing than what you have now. The exhaust is not helping the bottom end. A headpipe change to an x type with a cross under would be a huge improvement, V&H power duals, fuel moto etc. Did your tuner even address the timing? a few degrees here or there can make a huge difference but even then probably not enough to flatten and extend this torque curve. I see you are in NW Iowa so I suspect you have not yet ridden it to have any seat of the pants experience to relay. If you want a good 110 bolt in then I would suggest the cyclerama 575 and it's early intake close to go along with your stock compression. This is a before and after sheet from a 575 bolt in, I probably have a couple more as well. This was a softail bone stock and then with the 575 and Rinehart 2 into 1. We have since combined mild headwork and a bigger throttle body and it is now in the mid 120's for torque

Logged

b407driver

  • Junior CVO Member
  • **
  • Offline Offline
  • Posts: 76

    • CVO1: 2012 CVO Ultra
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #23 on: January 28, 2013, 11:22:01 AM »

Here is my dyno sheet with the GMR Genesis cam
Logged

LC110

  • Elite CVO Member
  • *****
  • Offline Offline
  • Posts: 667
    • WI


    • CVO1: 2009 FLTRSE3 Stardust Silver / Titanium Dust 1of 1344
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #24 on: January 28, 2013, 03:27:48 PM »

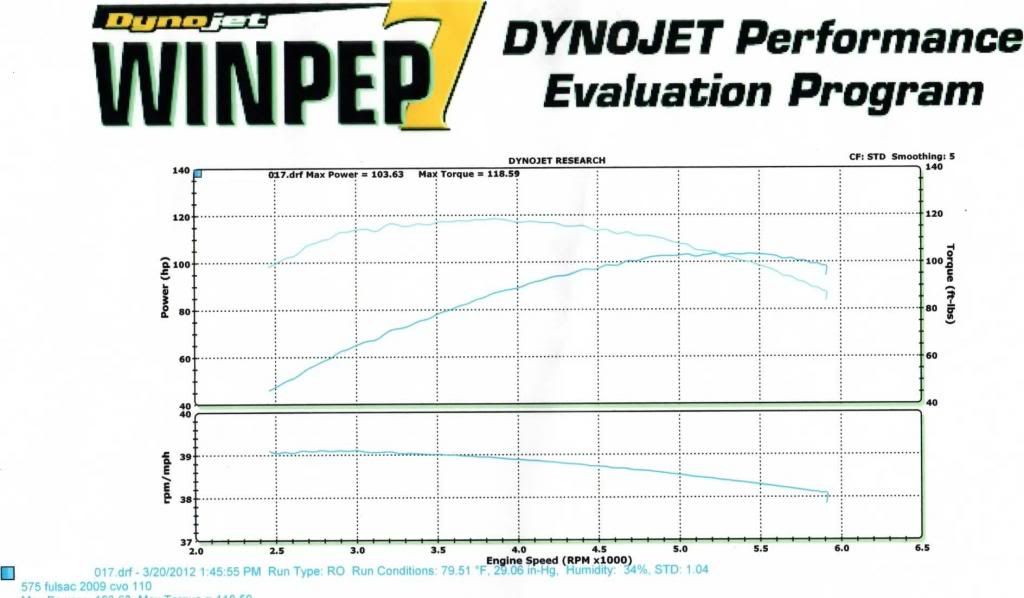

My 09 CVO Roadglide,Cycle Rama 575 Fullsac B pipe with Fullsac 2" cores, TTS
Tuned by Razorback.
Bike runs outstanding, I could not be happier.
« Last Edit: January 28, 2013, 03:32:31 PM by LC110 »
Logged
Spending time learning the science of the mechanisms of friction, lubrication, and wear of interacting surfaces that are in relative motion
Razorback Performance Built & Tuned 113@ 122.59 HP/139.30 TQ

Razorback

  • Newbie
  • *
  • Offline Offline
  • Posts: 41
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #25 on: January 28, 2013, 05:12:46 PM »

Here is my dyno sheet with the GMR Genesis cam
Hoping to try one of those very soon, looks good!
Logged

GMR-PERFORMANCE

  • Vendor
  • 1K CVO Member
  • *
  • Offline Offline
  • Posts: 1769
    • TX

Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #26 on: January 30, 2013, 10:12:31 AM »

Will have more in stock soon.. Been slammed with the move to Fort Worth TX.. Packing is never a fun job  ::) Will be worth it though once done.
Logged
2012 SHARK  S&S 124 150/140   www.gmrperformance.com

remington007

  • Newbie
  • *
  • Offline Offline
  • Posts: 46
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #27 on: January 30, 2013, 10:37:50 AM »

I would say that the Rinehart true duals are responsible for lack of low end torque. Ive had the same results even with LAC true duals. Fuel moto, full sac x-pipes and V&H power duals are a better option.
Logged

cvo1717

  • Elite CVO Member
  • *****
  • Offline Offline
  • Posts: 673
    • NY


    • CVO1: 2013 CVO BREAKOUT BLACK SOLD
    • CVO2: 2010 CVO FATBOB BLACK DENIM HELLFIRE FLAMES TRADED IN
    • CVO3: 2020 CVO street glide
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #28 on: January 30, 2013, 06:45:43 PM »

Here is my dyno sheet with the GMR Genesis cam
How did you get the 10;1 comp with gasket only or head work or pistion change?This set up looks really good :bananarock:
Logged
Mike
2013 CVO BREAKOUT 117 KIT
ROSAS HEADS WOODS TW 8-6 CAM
RB RACING 2 INTO 1 PROSTOCK CHALLENGE PIPE
130 HP  134 TQ STD
126 hp   131 TQ SAE

b407driver

  • Junior CVO Member
  • **
  • Offline Offline
  • Posts: 76

    • CVO1: 2012 CVO Ultra
Re: Which cam is a better choice in the the 110, the Andrews 54H or TW7H?
« Reply #29 on: January 31, 2013, 11:46:08 AM »

How did you get the 10;1 comp with gasket only or head work or pistion change?This set up looks really good :bananarock:

According to the guys at GMR, my heads were small....they cc'ed around 91-92. They matched the heads, decked them and installed an .030 gasket.
