Author Topic: Primary fluid level  (Read 1971 times)

0 Members and 1 Guest are viewing this topic.

Hotrod50

  • Elite CVO Member
  • *****
  • Offline Offline
  • Posts: 745

    • CVO1: 2009 FLTRSE3 Yellow
Primary fluid level
« on: July 22, 2012, 05:41:16 PM »
Is it correct to fill the primary fluid to the bottom of the derby cover opening?  On side stand or standing straight upright?
Logged
2009 FLTRSE3  Yellow
<img src="http://chart.apis.google.com/chart?cht=t&chtm=usa&chs=440x220&chf=bg,s,336699&chco=d0d0d0,cc0000&chd=s:9999999999999999&chld=AZARCACOKSMOMTNENVNMOKSDNDTXUTWY" width="440" height="220" >
visited 16 states (32%)
Create your own visited map of The United States or Free iphone travel guide

rdawg

  • Full CVO Member
  • ***
  • Offline Offline
  • Posts: 120

    • CVO1: 2011 FLTRUSE Rio Red AKA "Red Rider"
Re: Primary fluid level
« Reply #1 on: July 22, 2012, 05:53:01 PM »
Quote from: Hotrod50 on July 22, 2012, 05:41:16 PM
Is it correct to fill the primary fluid to the bottom of the derby cover opening?  On side stand or standing straight upright?

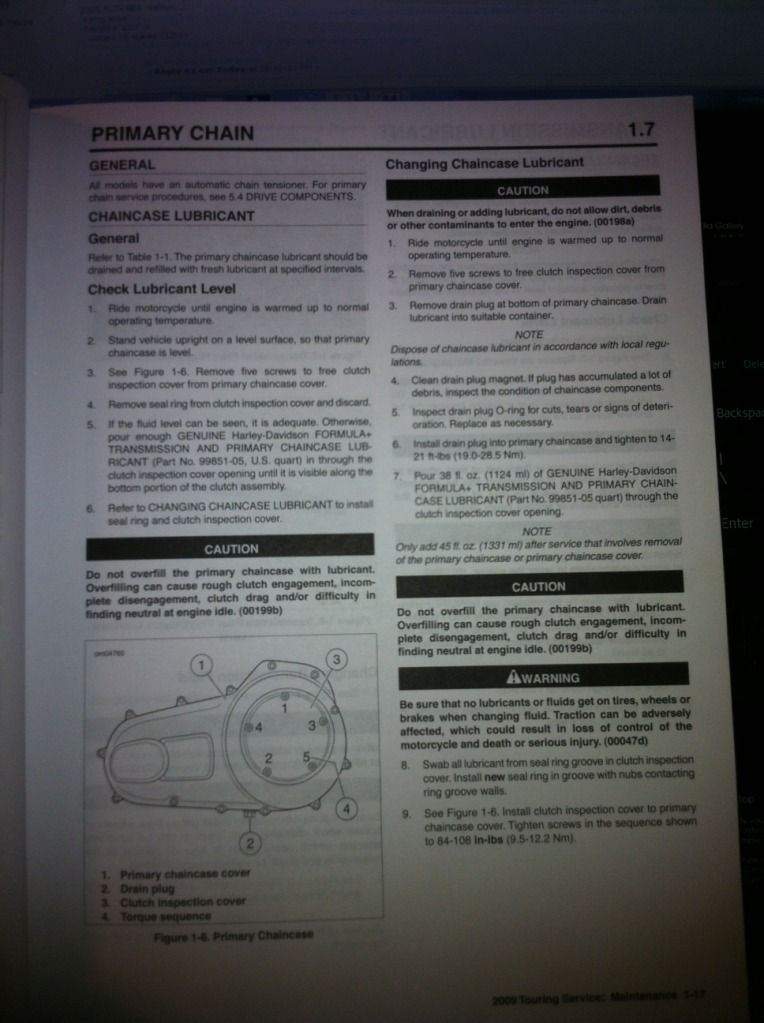

upright per my 09 service manual page 1-17
Logged

VANAMAL

  • 1K CVO Member
  • *
  • Offline Offline
  • Posts: 1862

    • CVO1: 2012 SESG
    • CVO2: 2005 seeg banana
Re: Primary fluid level
« Reply #2 on: July 22, 2012, 08:14:51 PM »
not so sure about that. the older style primarys with the inspection cover took 32oz filling to bottom of clutch basket. then newer ones take 38 oz. ive never heard of filling it to the bottom of the derby cover??? :orange: :bananarock:
Logged

grc

  • 10K CVO Member
  • ****
  • Offline Offline
  • Posts: 14216
  • AKA Grouchy Old Fart
    • IN


    • CVO1: 2005 SEEG2
Re: Primary fluid level
« Reply #3 on: July 22, 2012, 08:25:35 PM »

Unless the bottom of the clutch inspection cover opening is now the same height as the bottom edge of the clutch spring, I don't think you want to keep filling until the oil runs out of the opening.  Excess oil will cause the clutch to drag; you only want the level to barely touch the bottom edge of the clutch spring with the bike sitting level.  Since the new style primary doesn't drain as easily and completely as the old style did, it's a good idea to actually check the level visually instead of just dumping 38 ounces in the hole and assuming it's correct.  When in doubt, slightly low is better than high.


Jerry
Logged
Jerry - 2005 Cherry SEEG  -  Member # 1155

H-D and me  -  a classic love / hate relationship.  Current score:  love 40, hate 50, bewildered 10.

rdawg

  • Full CVO Member
  • ***
  • Offline Offline
  • Posts: 120

    • CVO1: 2011 FLTRUSE Rio Red AKA "Red Rider"
Re: Primary fluid level
« Reply #4 on: July 22, 2012, 08:47:41 PM »
Logged

rdawg

  • Full CVO Member
  • ***
  • Offline Offline
  • Posts: 120

    • CVO1: 2011 FLTRUSE Rio Red AKA "Red Rider"
Re: Primary fluid level
« Reply #5 on: July 22, 2012, 08:57:54 PM »
Van
I missed the part about "to the bottom of the primary cover.  Yes that would definitely be too much.
Logged

Coyote.

  • Senior CVO Member
  • ****
  • Offline Offline
  • Posts: 358

    • CVO1: 2007 SE Ultra - Buried in the back yard where it belongs.
    • CVO2: Already learned that lesson
Re: Primary fluid level
« Reply #6 on: July 30, 2012, 09:07:11 PM »
If you do not measure it, then fill it upright, to the bottom of the clutch basket.
